FEATURES

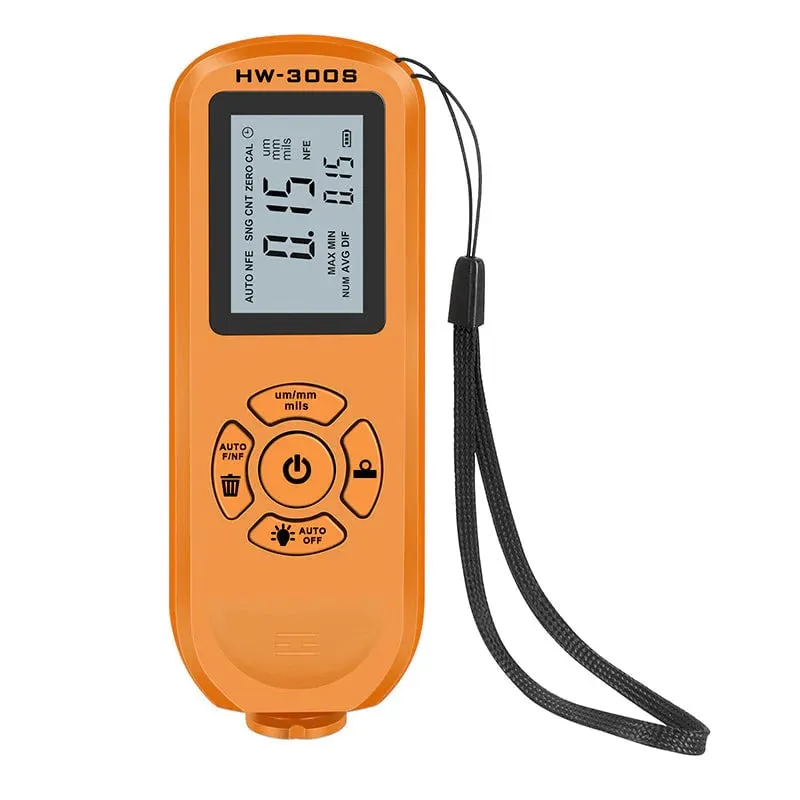

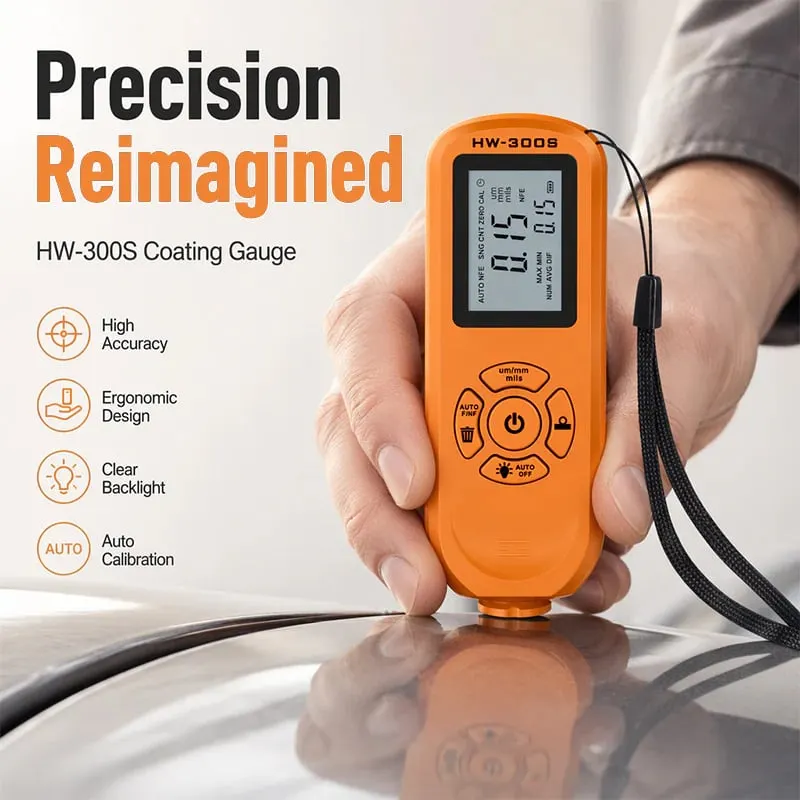

PRECISION DIGITAL COATING THICKNESS GAUGE -Professional-grade digital coating thickness gauge with self-calibration and high-contrast display for instant, accurate paint thickness measurements.

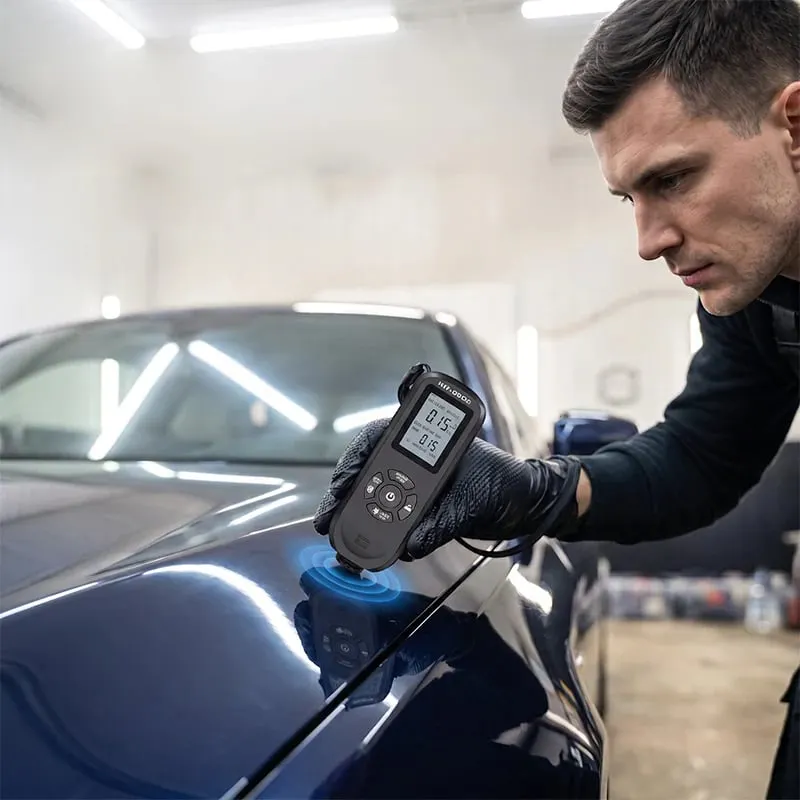

INSTANT SURFACE THICKNESS CHECK -Instantly verify paint thickness and locate hidden body repairs with this high-precision tester, designed for rapid inspections on automotive surfaces.
ADVANCED DUAL TECHNOLOGY SENSOR -Features an advanced dual-technology sensor that automatically detects magnetic and non-magnetic substrates for seamless testing.

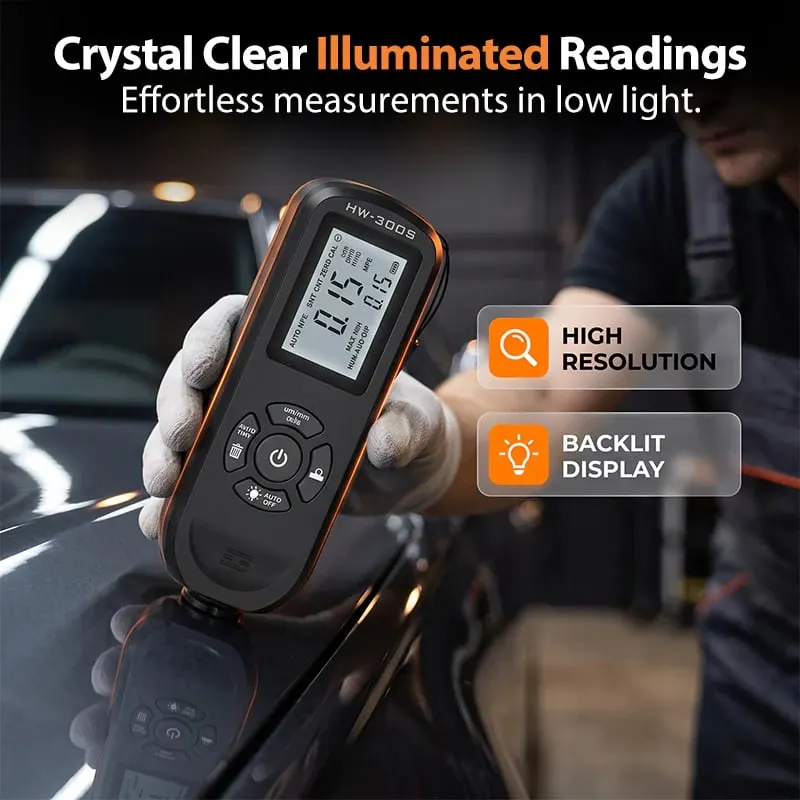

HIGH-RESOLUTION BACKLIT DIGITAL DISPLAY -Equipped with a high-resolution, backlit LCD screen that ensures clear and easy reading of measurements even in low-light environments.

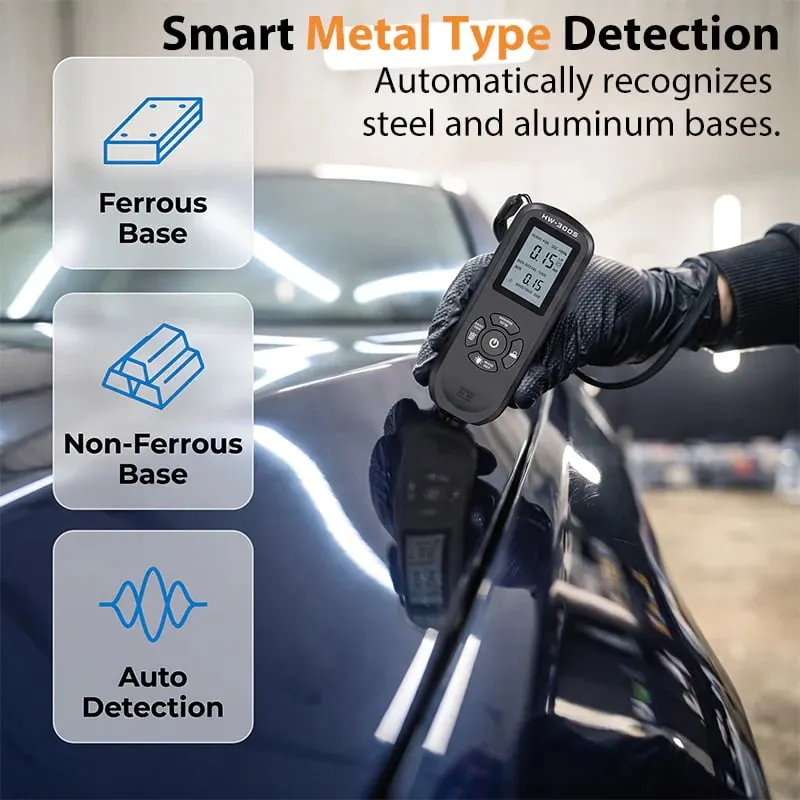

SMART METAL TYPE DETECTION -Instantly switch between magnetic and eddy current testing to detect paint thickness on both steel and aluminum body panels automatically.
SPECIFICATION
Color: Orange, Black
Model: Horizontal Screen, Vertical Screen
Size: 12cm x 4.3cm x 2.2cm (4.72 inches x 1.69 inches x 0.87 inches)
Material: ABS
Resolution: 0.01mm (1mil)
Measuring Range: 0-2000um
Accuracy: ± (3% + 1um)
Power Supply: 2 x 1.5V AAA batteries (not included)
Operating Temperature: -10 to 50 degrees Celsius (14 to 122 degrees Fahrenheit)
PACKAGE INCLUDES
1 x Coating Thickness Gauge
1 x Lanyard
1 x Calibration Film Set (0.05mm, 0.10mm, 0.25mm, 0.50mm, 1.00mm, 2.00mm)
1 x Base Sheet
1 x Instruction Manual
1 x Packing Box
NOTES
Please note that batteries are not included in the package and must be purchased separately.
Do not use the device in environments with extreme temperatures outside the specified operating range.
Clean the probe regularly with a soft cloth to ensure ongoing measurement accuracy.
